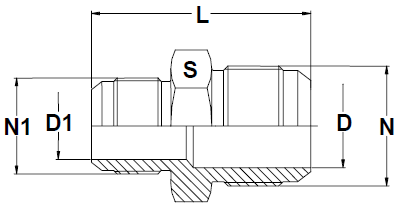

Stainless Steel 37 Degree Flare Reducing Unions : |
| |
| |
|
| |
| |
| TUBE OD |
TUBE OD |
UN / UNF |
THREAD
UN/UNF |
S |
L |
D1 |
D2 |
PART NO. |
mm |
Inch |
mm |
Inch |
N |
N1 |
mm |
mm |
mm |
mm |
|
| 10 |
3/8 |
6 |
1/4 |
9/16 -18 |
7/16 -20 |
16 |
36 |
7.5 |
4.5 |
6-4F-UR |
| 12 |
1/2 |
10 |
3/8 |
3/4-16 |
9/16 -18 |
19 |
39.5 |
10 |
7.5 |
8-6F-UR |
14/
15/
16 |
5/8 |
12 |
1/2 |
7/8-14 |
3/4 -16 |
24 |
45 |
12 |
10 |
10-8F-UR |
| 18/20 |
3/4 |
12 |
1/2 |
1 1/16-12 |
3/4 -16 |
27 |
49 |
15.5 |
10 |
12-8F-UR |
| 18/20 |
3/4 |
14/
15/
16 |
5/8 |
1 1/16-12 |
7/8 -14 |
27 |
52 |
15.5 |
12 |
12-10F-UR |
| 25 |
1 |
18/20 |
3/4 |
1 5/16-12
1 1/16-12 |
1 1/16 -12 |
36 |
56 |
21 |
15.5 |
16-12F-UR |
|
| |
|
| |
|
|
