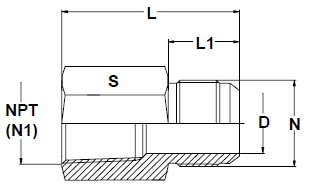

Stainless Steel 37 Degree Flare Female Connectors : |
| |
|
| |
| TUBE OD |
UN / UNF |
THREAD
NPT/NPTF |
S |
L |
L1 |
D |
PART NO. |
mm |
Inch |
N |
N1 |
mm |
mm |
mm |
mm |
|
| 6 |
1/4 |
7/16 -20 |
1/8 -27 |
14 |
30.2 |
14 |
4.4 |
4-2F-FCN |
| 6 |
1/4 |
7/16 -20 |
1/4 -18 |
19 |
35.3 |
14 |
4.4 |
4F-FCN |
| 8 |
5/16 |
1/2 -20 |
1/8 -27 |
14 |
29.7 |
14 |
6 |
5-2F-FCN |
| 8 |
5/16 |
1/2 -20 |
1/4 -18 |
19 |
35.3 |
14 |
6 |
5-4F-FCN |
| 10 |
3/8 |
9/16 -18 |
1/4 -18 |
19 |
35.8 |
14.1 |
7.5 |
6-4F-FCN |
| 10 |
3/8 |
9/16 -18 |
3/8 -18 |
22 |
37.3 |
14.1 |
7.5 |
6F-FCN |
| 12 |
1/2 |
3/4 -16 |
3/8 -18 |
22 |
39.6 |
16.7 |
9.9 |
8-6F-FCN |
| 12 |
1/2 |
3/4 -16 |
1/2 -14 |
30 |
45.5 |
16.7 |
9.9 |
8F-FCN |
| 14/15/16 |
5/8 |
7/8 -14 |
1/2 -14 |
30 |
48 |
19.3 |
12.3 |
10-8F-FCN |
| 18/20 |
3/4 |
1 1/16 -12 |
1/2 -14 |
30 |
48.5 |
21.9 |
15.5 |
12-8F-FCN |
| 18/20 |
3/4 |
1 1/16 -12 |
3/4 -14 |
36 |
52.3 |
21.9 |
15.5 |
12F-FCN |
| 25 |
1 |
1 5/16 -12 |
1 -11.5 |
41 |
59.7 |
23.1 |
21.5 |
16F-FCN |
| 28/30/32 |
1 1/4 |
1 5/8 -12 |
1 1/4 -11.5 |
50 |
63 |
24.3 |
27.5 |
20F-FCN |
| 35/38 |
1 1/2 |
1 7/8 -12 |
1 1/2 -11.5 |
60 |
66.8 |
27.5 |
33 |
24F-FCN |
|
| |
|
| |
|
|
