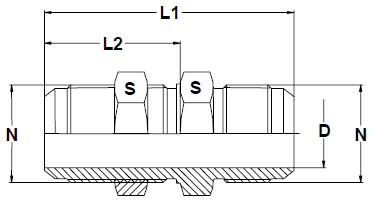

Stainless Steel 37 Degree Flare Bulkhead Unions : |
| |
| |
|
| |
| TUBE OD |
UN / UNF |
S |
L1 |
L2 |
D |
PART NO. |
mm |
Inch |
N |
mm |
mm |
mm |
mm |
|
| 6 |
1/4 |
7/16 -20 |
17 |
52.6 |
31.5 |
4.4 |
4F-UB |
| 8 |
5/16 |
1/2 -20 |
19 |
52.6 |
31.5 |
6 |
5F-UB |
| 10 |
3/8 |
9/16 -18 |
22 |
55.4 |
33.5 |
7.5 |
6F-UB |
| 12 |
1/2 |
3/4 -16 |
24 |
62 |
37.6 |
9.9 |
8F-UB |
| 14/15/16 |
5/8 |
7/8 -14 |
30 |
69.6 |
41.1 |
12.3 |
10F-UB |
| 18/20 |
3/4 |
1 1/16 -12 |
36 |
78.5 |
45.4 |
15.5 |
12F-UB |
| 25 |
1 |
1 5/16 -12 |
41 |
79.8 |
45.4 |
21.5 |
16F-UB |
| 28/30/32 |
1 1/4 |
1 5/8 -12 |
50 |
84.1 |
46.7 |
27.5 |
20F-UB |
| 35/38 |
1 1/2 |
1 7/8 -12 |
55 |
89.4 |
47 |
33 |
24F-UB |
|
| |
|
| |
|
|
