Stainless Steel 37 Degree Flare 45 Degree Elbows :

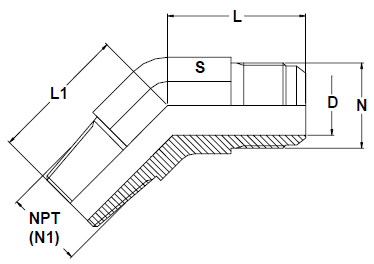

Stainless Steel 37 Degree Flare 45 Degree Elbows


TUBE OD UN / UNF NPT / NPTF S       PART NO.

mm

Inch N N1 mm mm mm mm



6 1/4   7/16  -20   1/8  -27  11 18.3 16.3 4.4 4-2F-AMEN
6 1/4   7/16  -20   1/4  -18  14 20.8 21.8 4.4 4F-AMEN
8 5/16  1/2  -20   1/8  -27  13 19.6 16.3 6 5-2F-AMEN
8 5/16  1/2  -20   1/4  -18  14 20.8 21.8 6 5-4F-AMEN
10 3/8   9/16  -18   1/8  -27  14 21.1 21.8 7.5 6-2F-AMEN
10 3/8   9/16  -18   1/4  -18  14 21 17 7.5 6-4F-AMEN
10 3/8   9/16  -18   3/8  -18  19 22.1 24.1 7.5 6F-AMEN
10 3/8   9/16  -18   1/2  -14  22 22.4 29.7 7.5 6-8F-AMEN
12 1/2  3/4  -16   1/4  -18  19 25 24 9.9 8-4F-AMEN
12 1/2  3/4  -16   3/8  -18  19 24.9 24.1 9.9 8-6F-AMEN
12 1/2  3/4  -16   1/2  -14  22 24.9 29.7 9.9 8F-AMEN
12 1/2  3/4  -16   3/4  -14  27 26.5 30.5 9.9 8-12F-AMEN
14/15/16  5/8  7/8  -14   3/8  -18  22 28 25 12.3 10-6F-AMEN
14/15/16  5/8  7/8  -14   1/2  -14  22 28.2 29.7 12.3 10-8F-AMEN
14/15/16  5/8  7/8  -14   3/4  -14  27 29.5 30.5 12.3 10-12F-AMEN
18/20  3/4 1  1/16  -12   1/2  -14  27 32.5 30.5 15.5 12-8F-AMEN
18/20  3/4 1  1/16  -12   3/4  -14  27 32.5 33 15.5 12F-AMEN
18/20  3/4 1  1/16  -12  1  -11.5  33 36 32.5 15.5 12-16F-AMEN
25 1 1  5/16  -12   3/4  -14  33 37.5 37.6 21.5 16-12F-AMEN
25 1 1  5/16  -12  1  -11.5  33 37.3 37.6 21.5 16F-AMEN
28/30/32  1 1/4  1 5/8  -12  1 1/4  -11.5  41 40.4 42.4 27.5 20F-AMEN
35/38  1 1/2  1 7/8  -12  1 1/2  -11.5  48 45.2 45 33 24F-AMEN

  THREAD
UN / UNF
THREAD / BSPF S       PART NO.

mm

Inch N N1 mm mm mm mm



6 1/4   7/16  -20   1/8  -28  11 18.3 16.3 4.4 4-2F-AMER
6 1/4   7/16  -20   1/4  -19  14 20.8 21.8 4.4 4F-AMER
8 5/16  1/2  -20   1/8  -28  13 19.6 16.8 6 5-2F-AMER
8 5/16  1/2  -20   1/4  -19  14 20.8 21.8 6 5-4F-AMER
10 3/8   9/16  -18   1/4  -19  14 21.1 21.8 7.5 6-4F-AMER
10 3/8   9/16  -18   3/8  -19  19 22.1 24.1 7.5 6F-AMER
10 3/8   9/16  -18   1/2  -14  22 22.4 29.7 7.5 6-8F-AMER
12 1/2  3/4  -16   3/8  -19  19 24.9 24.1 9.9 8-6F-AMER
12 1/2  3/4  -16   1/2  -14  22 25.2 29.7 9.9 8F-AMER
14/15/16  5/8  7/8  -14   1/2  -14  22 28.2 29.7 12.3 10-8F-AMER
18/20  3/4 1  1/16  -12   3/4  -14  27 32.5 30.5 15.5 12F-AMER
25 1 1  5/16  -12  1  -11  33 37.3 37.6 21.5 16F-AMER
28/30/32  1 1/4  1 5/8  -12  1 1/4  -11  41 40.4 42.4 27.5 20F-AMER
35/38  1 1/2  1 7/8  -12  1 1/2  -11  48 45.2 45 33 24F-AMER


Stainless Steel 37 Degree Flare 45 Degree Elbows

TUBE OD THREAD
UN / UNF
THREAD
BSPT
S L L1 S1 D PART NO.

mm

Inch N N1 mm mm mm mm mm



6 1/4   7/16  -20   1/8  -28  11 18.3 26.5 14 4.4 4-2F-AMEG
6 1/4   7/16  -20   1/4  -19  14 20.8 29 19 4.4 4F-AMEG
8 5/16  1/2  -20   1/8  -28  13 19.6 26.5 14 6 5-2F-AMEG
8 5/16  1/2  -20   1/4  -19  14 20.8 29 19 6 5-4F-AMEG
10 3/8   9/16  -18   1/4  -19  14 21.1 29 19 7.5 6-4F-AMEG
12 1/2  3/4  -16   3/8  -19  19 24.9 33 22 9.9 8-6F-AMEG
12 1/2  3/4  -16   1/2  -14  22 25.2 38.5 27 9.9 8F-AMEG
14/15/16  5/8  7/8  -14   1/2  -14  22 28.2 38.6 27 12.3 10-8F-AMEG
14/15/16  5/8  7/8  -14   3/4  -14  27 29.5 44 36 12.3 10-12F-AMEG
18/20  3/4 1  1/16  -12   3/4  -14  27 32.5 44 36 15.5 12F-AMEG
25 1 1  5/16  -12  1  -11  33 37.2 47 41 21.5 16F-AMEG
28/30/32  1 1/4  1 5/8  -12  1 1/4  -11  41 40.4 48 50 27.5 20F-AMEG

TUBE OD THREAD
UN / UNF
THREAD
BSPT
S L L1 S1 D PART NO.

mm

Inch N N1 mm mm mm mm mm



6 1/4   7/16 -20    7/16  -20  11 18.3 26.7 14 4.4 4-7F-AMEU
8 5/16  1/2 -20   1/2  -20  13 19.6 26.7 17 6 5-8F-AMEU
10 3/8   9/16 -18    9/16  -20  14 21.1 29 17 7.5 6-9F-AMEU
10 3/8   9/16 -18   3/4  -16  19 24.9 29.7 17 7.5 6-12F-AMEU
12 1/2  3/4 -16   3/4  -16  19 24.9 33 22 9.9 8-12F-AMEU
12 1/2  3/4 -16   7/8  -14  22 25.2 38.6 27 9.9 8-14F-AMEU
14/15/16  5/8  7/8 -14   3/4  -16  22 28.2 34.5 22 12.3 10-12F-AMEU
14/15/16  5/8  7/8 -14   7/8  -14  22 28.2 38.6 27 12.3 10-14F-AMEU
18/20  3/4 1  1/16 -12   7/8  -14  27 32.5 39.8 27 15.5 12-14F-AMEU
18/20  3/4 1  1/16 -12 1  1/16  -12  27 32.5 43.9 32 15.5 12-17F-AMEU
25 1 1  5/16 -12 1  5/16  -12 33 37.3 47.2 41 21.5 16-21F-AMEU
28/30/32  1 1/4  1 5/8 -12  1 5/8  -12  41 40.4 48.5 50 27.5 20-26F-AMEU
35/38  1 1/2  1 7/8 -12  1 7/8  -12  48 45.2 48.5 55 33 24-30F-AMEU
