Stainless Steel 37 Degree Flare Male Connectors :

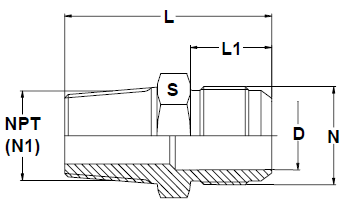

Stainless Steel 37 Degree Flare Male Connectors

TUBE OD UN / UNF THREAD
NPT/NPTF
S L L1 D PART NO.

mm

Inch N N1 mm mm mm mm



6 1/4   7/16  -20   1/8  -27  13 31 14 4.4 4-2F-MCN
6 1/4   7/16  -20   1/4  -18  14 36 14 4.4 4F-MCN
6 1/4   7/16  -20   3/8  -18  19 37 14 4.4 4-6F-MCN
6 1/4   7/16  -20   1/2  -14  22 43 14 4.4 4-8F-MCN
8 5/16  1/2  -20   1/8  -27  14 31 14 6 5-2F-MCN
8 5/16  1/2  -20   1/4  -18  14 36 14 6 5-4F-MCN
10 3/8   9/16  -18   1/8  -27  16 32 14.1 7.5 6-2F-MCN
10 3/8   9/16  -18   1/4  -18  16 36.3 14.1 7.5 6-4F-MCN
10 3/8   9/16  -18   3/8  -18  19 36.4 14.1 7.5 6F-MCN
10 3/8   9/16  -18   1/2  -14  22 42.9 14.1 7.5 6-8F-MCN
12 1/2  3/4  -16   1/4  -18  19 38.9 16.7 9.9 8-4F-MCN
12 1/2  3/4  -16   3/8  -18  19 38.9 16.7 9.9 8-6F-MCN
12 1/2  3/4  -16   1/2  -14  22 45.5 16.7 9.9 8F-MCN
12 1/2  3/4  -16   3/4  -14  27 47 16.7 9.9 8-12F-MCN
14/15/16  5/8  7/8  -14   3/8  -18  24 43.2 19.3 12.3 10-6F-MCN
14/15/16  5/8  7/8  -14   1/2  -14  24 48 19.3 12.3 10-8F-MCN
14/15/16  5/8  7/8  -14   3/4  -14  27 49.5 19.3 12.3 10-12F-MCN
18/20  3/4 1  1/16  -12   1/2  -14  27 52.3 21.9 15.5 12-8F-MCN
18/20  3/4 1  1/16  -12   3/4  -14  27 52.3 21.9 15.5 12F-MCN
18/20  3/4 1  1/16  -12  1  -11.5  36 57.1 21.9 15.5 12-16F-MCN
25 1 1  5/16  -12   3/4  -14  36 53.6 23.1 21.5 16-12F-MCN
25 1 1  5/16  -12  1  -11.5  36 58.4 23.1 21.5 16F-MCN
28/30/32  1 1/4  1 5/8  -12  1  -11.5  46 61.4 24.3 27.5 20-16F-MCN
28/30/32  1 1/4  1 5/8  -12  1 1/4  -11.5  46 62.2 24.3 27.5 20F-MCN
35/38  1 1/2  1 7/8  -12  1 1/4  -11.5  50 67.3 27.5 33 24-20F-MCN
35/38  1 1/2  1 7/8  -12  1 1/2  -11.5  50 68.1 27.5 33 24F-MCN

TUBE OD THREAD
UN / UNF
THREAD
BSPT
S L L1 D PART NO.

mm

Inch N N1 mm mm mm mm



6 1/4   7/16  -20   1/8  -28  13 30.7 14 4.4 4-2F-MCR
6 1/4   7/16  -20   1/4  -19  14 35.3 14 4.4 4F-MCR
8 5/16  1/2  -20   1/8  -28  14 30.7 14 6 5-2F-MCR
8 5/16  1/2  -20   1/4  -19  14 35.3 14 6 5-4F-MCR
10 3/8   9/16  -18   1/4  -19  16 35.6 14.1 7.5 6-4F-MCR
10 3/8   9/16  -18   3/8  -19  19 35.6 14.1 7.5 6F-MCR
10 3/8   9/16  -18   1/2  -14  22 41.1 14.1 7.5 6-8F-MCR
12 1/2  3/4  -16   1/4  -19  19 38.1 16.7 9.9 8-4F-MCR
12 1/2  3/4  -16   3/8  -19  19 38.1 16.7 9.9 8-6F-MCR
12 1/2  3/4  -16   1/2  -14  22 43.7 16.7 9.9 8F-MCR
14/15/16  5/8  7/8  -14   3/8  -19  24 41.9 19.3 12.3 10-6F-MCR
14/15/16  5/8  7/8  -14   1/2  -14  24 46.7 19.3 12.3 10-8F-MCR
14/15/16  5/8  7/8  -14   3/4  -14  27 48.3 19.3 12.3 10-12F-MCR
18/20  3/4 1  1/16  -12   1/2  -14  27 20.8 21.9 15.5 12-8F-MCR
18/20  3/4 1  1/16  -12   3/4  -14  27 50.8 21.9 15.5 12F-MCR
18/20  3/4 1  1/16  -12  1  -11  36 56.6 21.9 15.5 12-16F-MCR
25 1 1  5/16  -12   3/4  -14  36 53.1 23.1 21.5 16-12F-MCR
25 1 1  5/16  -12  1  -11  36 57.9 23.1 21.5 16F-MCR
28/30/32  1 1/4  1 5/8  -12  1  -11  46 60.2 24.3 27.5 20-16F-MCR
28/30/32  1 1/4  1 5/8  -12  1 1/4  -11  46 61 24.3 27.5 20F-MCR
35/38  1 1/2  1 7/8  -12  1 1/4  -11  50 65.5 27.5 33 24-20F-MCR
35/38  1 1/2  1 7/8  -12  1 1/2  -11  50 66.3 27.5 33 24F-MCR

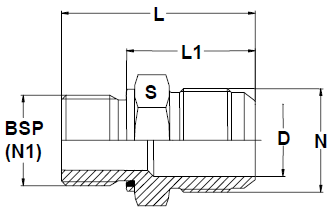

Stainless Steel 37 Degree Flare Male Connectors
TUBE OD THREAD
UN / UNF
THREAD
BSP
S L L1 D PART NO.

mm

Inch N N1 mm mm mm mm



6 1/4   7/16  -20   1/8  -28  16 28.7 22.5 4.4 4-2F-MCG
6 1/4   7/16  -20   1/4  -19  19 32 22.7 4.4 4F-MCG
6 1/4   7/16  -20   3/8  -19  22 33 23.7 4.4 4-6F-MCG
6 1/4   7/16  -20   1/2  -14  30 38.6 26 4.4 4-8F-MCG
8 5/16  1/2  -20   1/8  -28  16 28.7 22.5 6 5-2F-MCG
8 5/16  1/2  -20   1/4  -19  19 32 22.7 6 5-4F-MCG
8 5/16  1/2  -20   3/8  -19  22 33 23.7 6 5-6F-MCG
10 3/8   9/16  -18   1/8  -28  16 28.7 22.5 7.5 6-2F-MCG
10 3/8   9/16  -18   1/4  -19  19 32 22.7 7.5 6-4F-MCG
10 3/8   9/16  -18   3/8  -19  22 33 23.7 7.5 6F-MCG
10 3/8   9/16  -18   1/2  -14  30 38.6 26 7.5 6-8F-MCG
12 1/2  3/4  -16   1/4  -19  19 35 25.7 9.9 8-4F-MCG
12 1/2  3/4  -16   3/8  -19  22 36 26.7 9.9 8-6F-MCG
12 1/2  3/4  -16   1/2  -14  30 41.4 28.8 9.9 8F-MCG
12 1/2  3/4  -16   3/4  -14  36 42.4 29.8 9.9 8-12F-MCG
14/15/16  5/8  7/8  -14   3/8  -19  24 39.1 29.8 12.3 10-6F-MCG
14/15/16  5/8  7/8  -14   1/2  -14  30 43.9 31.3 12.3 10-8F-MCG
14/15/16  5/8  7/8  -14   3/4  -14  36 45 32.4 12.3 10-12F-MCG
18/20  3/4 1  1/16  -12   1/2  -14  30 46.7 34.1 15.5 12-8F-MCG
18/20  3/4 1  1/16  -12   3/4  -14  36 47.5 34.9 15.5 12F-MCG
18/20  3/4 1  1/16  -12  1  -11  46 52.6 36.7 15.5 12-16F-MCG
25 1 1  5/16  -12   3/4  -14  36 48.5 35.9 21.5 16-12F-MCG
25 1 1  5/16  -12  1  -11  46 53.6 37.7 21.5 16F-MCG
25 1 1  5/16  -12  1 1/4  -11  50 55.1 39.7 21.5 16-20F-MCG
28/30/32  1 1/4  1 5/8  -12  1 1/4  -11  50 56.8 40.9 27.5 20F-MCG
28/30/32  1 1/4  1 5/8  -12  1 1/2  -11  55 56.9 41 27.5 20-24F-MCG
35/38  1 1/2  1 7/8  -12  1 1/4  -11  50 60.4 44.5 33 24-20F-MCG
35/38  1 1/2  1 7/8  -12  1 1/2  -11  55 61 45.1 33 24F-MCG

Stainless Steel 37 Degree Flare Male Connectors

  THREAD
UN / UNF
THREAD
BSP
S       PART NO.

mm

Inch N N1 mm mm mm mm



6 1/4   7/16  -20    7/16 -20  14 31.2 22 4.4 4-7F-MCU
6 1/4   7/16  -20   1/2 -20  17 31.2 22 4.4 4-8F-MCU
6 1/4   7/16  -20    9/16 -18  17 32.7 22.8 4.4 4-9F-MCU
6 1/4   7/16  -20   3/4 -16  22 35 23.9 4.4 4-12F-MCU
8 5/16  1/2  -20   1/2 -20  17 31.2 22 6 5-8F-MCU
8 5/16  1/2  -20    9/16 -18  17 33 23 6 5-9F-MCU
10 3/8   9/16  -18    7/16 -20  17 32.2 23 7.5 5-7F-MCU
10 3/8   9/16  -18   1/2 -20  17 32.2 23 7.5 6-8F-MCU
10 3/8   9/16  -18    9/16 -18  17 33 23 7.5 6-9F-MCU
10 3/8   9/16  -18   3/4 -16  22 35.1 24 7.5 6-12F-MCU
10 3/8   9/16  -18   7/8 -14  27 35 25.4 7.5 6-14F-MCU
12 1/2  3/4  -16    9/16 -18  22 36.6 26.7 9.9 8-9F-MCU
12 1/2  3/4  -16   3/4 -16  22 38.1 26.4 9.9 8-12F-MCU
12 1/2  3/4  -16   7/8 -14  27 40.7 28 9.9 8-14F-MCU
12 1/2  3/4  -16  1  1/16 -12  32 44.7 29.6 9.9 8-17F-MCU
14/15/16  5/8  7/8  -14   3/4 -16  27 41.7 30.6 12.3 10-12F-MCU
14/15/16  5/8  7/8  -14   7/8 -14  27 43.2 30.5 12.3 10-14F-MCU
14/15/16  5/8  7/8  -14  1  1/16 -12  32 47.2 32.1 12.3 10-17F-MCU
18/20  3/4 1  1/16  -12   3/4 -16  27 49.2 38 15.5 12F-MCU
18/20  3/4 1  1/16  -12   7/8 -14  27 47.7 35 15.5 12-14F-MCU
18/20  3/4 1  1/16  -12  1  1/16 -12  32 50 34.9 15.5 12-17F-MCU
18/20  3/4 1  1/16  -12  1  5/16 -12  41 50.5 35.4 15.5 12-21F-MCU
25 1 1  5/16  -12   7/8 -14  36 52.8 39.9 21.5 16-14F-MCU
25 1 1  5/16  -12  1  1/16 -12  36 50.5 36.6 21.5 16-17F-MCU
25 1 1  5/16  -12  1  3/16 -12  36 52 37.1 21.5 16-19F-MCU
25 1 1  5/16  -12  1  5/16 -12  41 52 37 21.5 16-21F-MCU
25 1 1  5/16  -12  1 5/8 -12  50 54.1 39.1 21.5 16-26F-MCU
28/30/32  1 1/4  1 5/8  -12  1  5/16 -12  46 59.1 44.2 27.5 20-21F-MCU
28/30/32  1 1/4  1 5/8  -12  1 5/8 -12  50 55.1 40.1 27.5 20-26F-MCU
35/38  1 1/2  1 7/8  -12  1 5/8 -12  55 60.4 45.5 33 24-26F-MCU
35/38  1 1/2  1 7/8  -12  1 7/8 -12  55 64.3 49.3 33 24-30F-MCU
